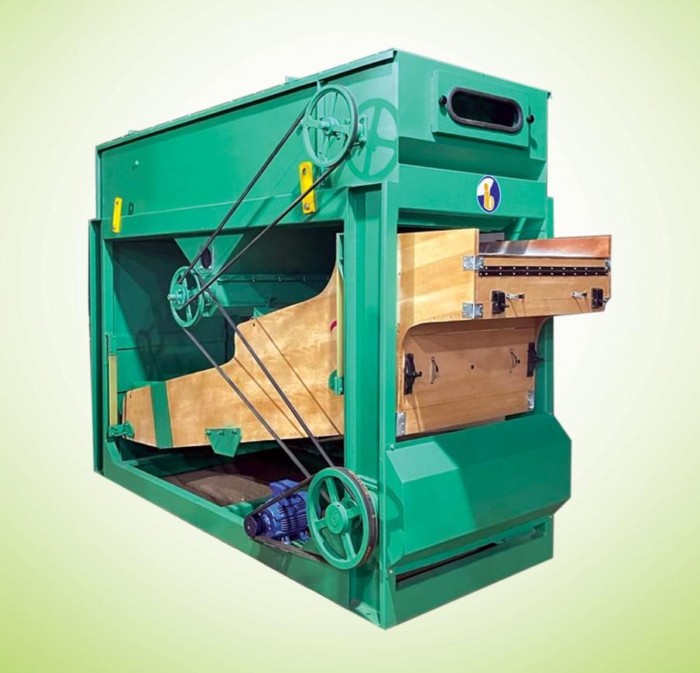

Pre Cleaner
The IB Agro Pre-Cleaner Type IB is intensed to Master the Pre- Cleaning at intake plants. The IBP is also ideal to dress malting barely and milling grain to the highest quality commercial sample at a reduced throughput.
1.With inlet and feed roll, Pre-aspiration, tail aspiration and waste outlet on the right hand side (while viewing from feed end)
2.With one sieve boat with one short screen layer (1 screen parts) one long grading screen (3 screen parts) and one long sand screen layer (3 Screen parts)
3.With built-on fan, firm drive and motors
4.Incl. one set of screens (field perforated) + ball frames
| Technical Data : Type IBP | UOM | IBP-4 | IBP-6 | IBP-8 |
| Technical Data : Type IBP | mm | 600 | 1005 | 1505 |
| Screen Area | m2 | 5.00 | 7.00 | 10.50 |
| Motor, Fan | HP | 5.00 | 5.00 | 7.5 |
| Motor, Sieve Boat | HP | 1.5 | 2.0 | 2.0 |
| Air Volume | m3/Hr | 6500 | 8000 | 8000 |
| Cyclone Dia (Not in our Scope) | mm | 1000 | 1200 | 1400 |
| No.of Rubber Balls / Machine | Pcs | 600 | 800 | 1043 |
| Length of Bottom Frame | mm | 2760 | 2760 | 2760 |
| Width of Bottom Frame | mm | 920 | 1220 | 2200 |
| Machine Ht. Without Fan | mm | 2560 | 2560 | 2560 |
| Fan Height | mm | 715 | 715 | 715 |
| Capacity* Pre Cleaning on Paddy | Ton/Hr | 3-5 | 8-10 | 12-15 |
